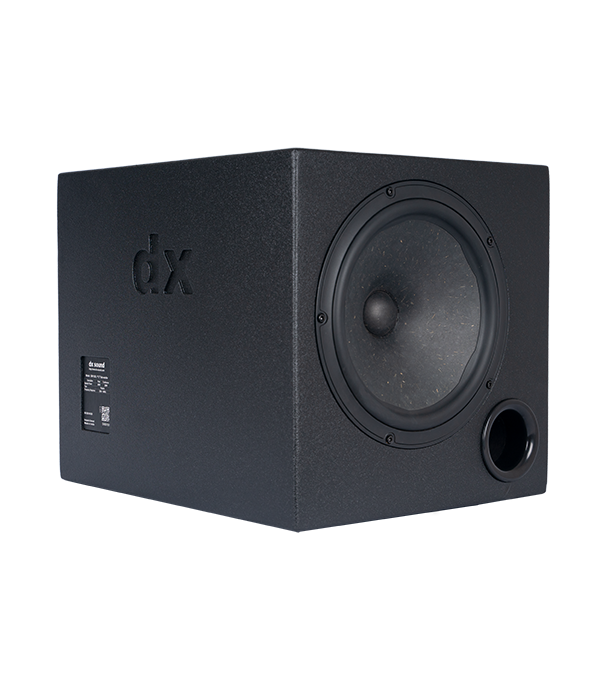

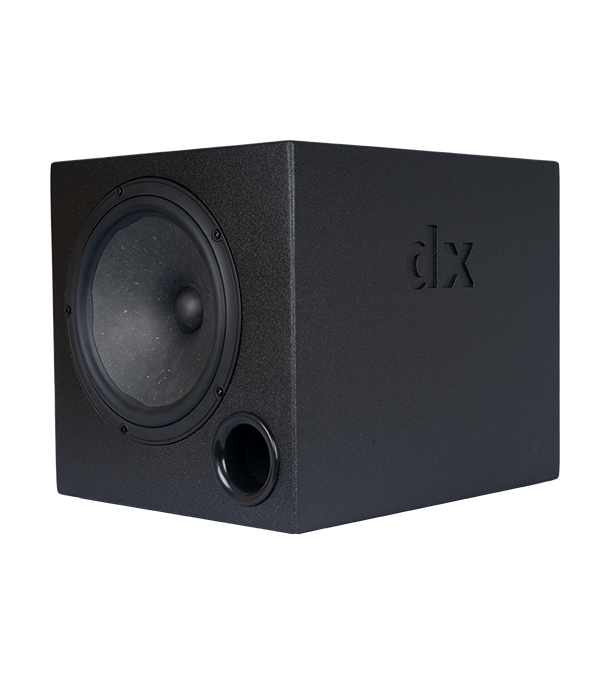

SW 18

Technical Parameters
Frequency Range 33Hz-400Hz (-3dB) In Room Response
Power Handling 150-375* Watts recommended amplifier power.
* The use of a power amplifier with high pass filter and soft limiter function is strongly recommended on Passive sub woofers(If use Passive Models).
Sensitivity 91dB for 2.83 volts at 1 meter
Impedance 4Ω
Enclosure Type Bass reflex, front vented
Driver Low Frequency Driver-Single 8” paper cone driver with 50mm (2”) long throw voice coil developed for high level, low frequency reinforcement
Input Terminal Push To Hold type
Dimensions 356mm high x 356mm wide x 451mm deep
