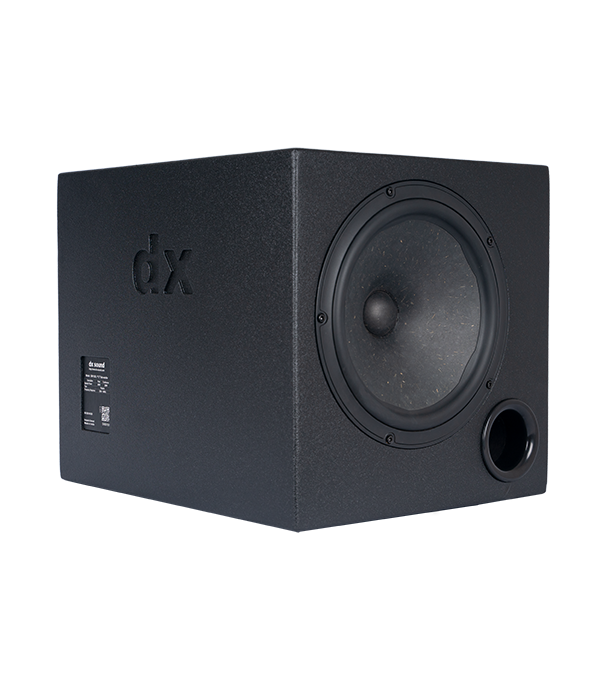

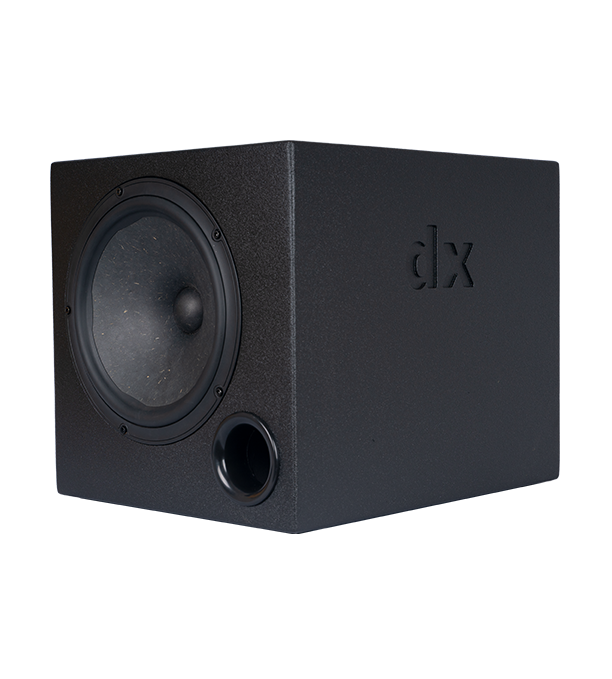

SW 112B

Technical Parameters
Frequency Range 25Hz-400Hz (-3dB) In Room Response
Power Handling 200-375* Watts recommended amplifier power.
* The use of a power amplifier with high pass filter and soft limiter function is strongly recommended on Passive sub woofers(If use Passive Models).
Sensitivity 92dB for 2.83 volts at 1 meter
Impedance 4Ω
Enclosure Type Bass reflex, front vented
Driver Low Frequency Driver-Single12” paper cone driver with 51.32mm (2 in) long throw voice coil developed for high level, low frequency reinforcement

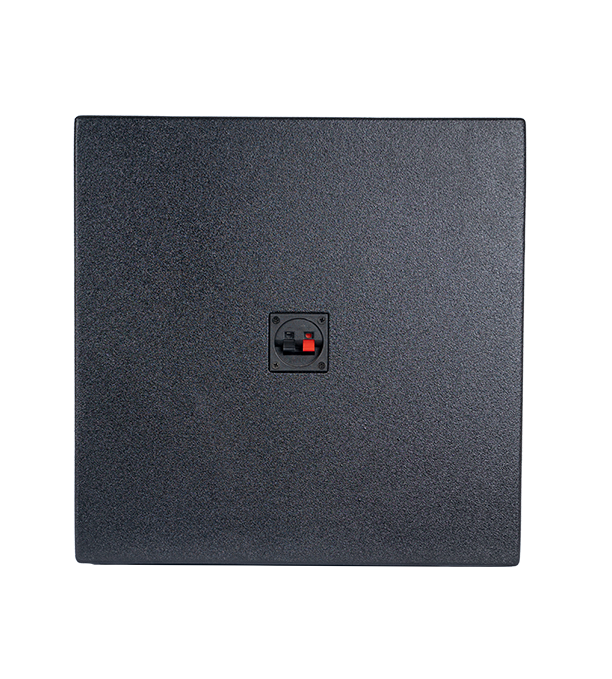

Input Terminal Push To Hold type
Dimensions 421mm high x 421mm wide x 516mm deep
