| Frequency Range |
18Hz-400Hz (-3dB) In Room Response |
| Power Handling |
2700-3500* Watts recommended amplifier power
* The use of a power amplifier with high pass filter and soft limiter function is strongly recommended
on Passive sub woofers(If use Passive Models). |
| Sensitivity |
87dB for 2.83 volts at 1 meter |
| Impedance |
4Ω |
| Enclosure Type |
Bass reflex, front vented |
| Driver |
Low Frequency Driver-Single15” Carbon cone driver with 188mm (7.4 in) long throw voice coil
developed for high level, low frequency reinforcement |

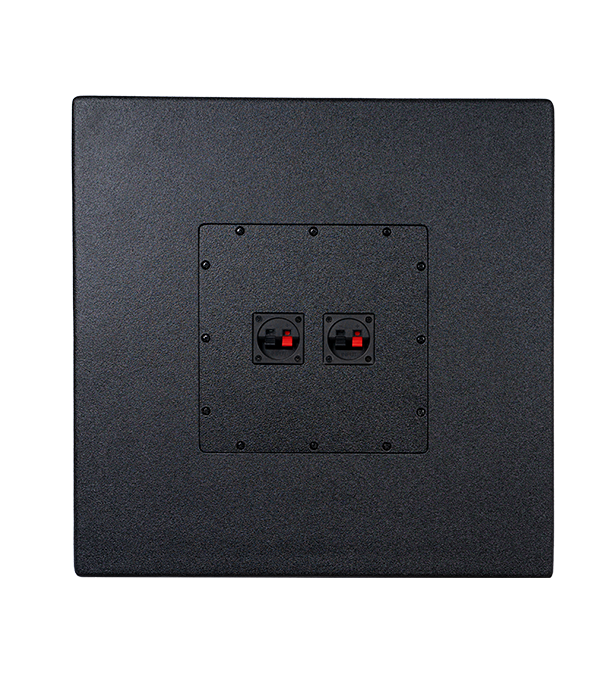

| Input Terminal |
Push To Hold type |
| Dimensions |
526mm high x 526mm wide x 676mm deep |
