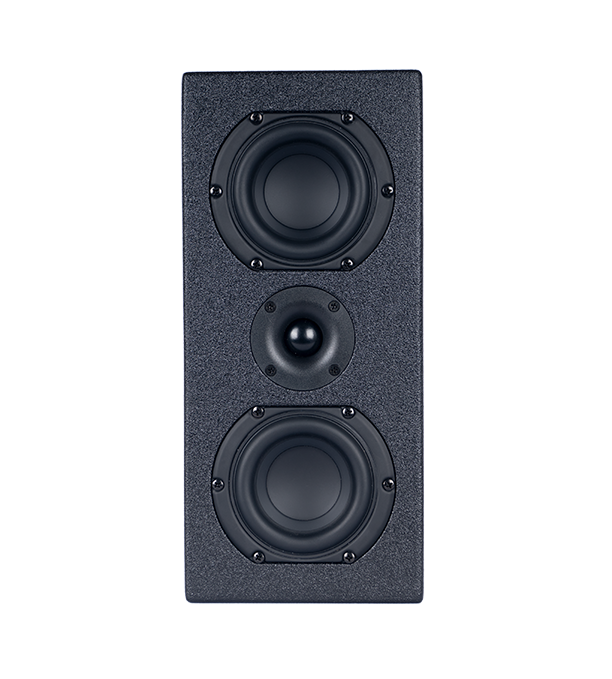

HT 14P Pack

Technical Parameters
Frequency Range 85Hz-20kHz (-3dB) In Room Response
Power Handling 60-120 Watts recommended amplifier power
Sensitivity 84dB for 2.83 volts at 1 meter
Impedance 8Ω (minimum 4Ω)
Configuration 2 way
Enclosure Type Sealed
Driver Low Frequency Driver-Dual 4” paper cone driver/Center-Dual 4" High Frequency Driver-25mm (1”) Fabric Dome Tweeter with Neodymium Magnet
Input Terminal Push To Hold type
Dimensions 230mm high x 147mm wide x 142mm deep


Surround Speakers
Frequency Range 90Hz-20kHz (-3dB) In Room Response
Power Handling 60-110 Watts recommended amplifier power
Sensitivity 81dB for 2.83 volts at 1 meter
Impedance 8Ω (minimum 4Ω)
Configuration 2 way
Enclosure Type Sealed
Driver Low Frequency Driver-Single 4” paper cone driver High Frequency Driver-25mm (1”) Fabric Dome Tweeter with Neodymium Magnet
Input Terminal Push To Hold type
Dimensions 130mm high x 147mm wide x 142mm deep

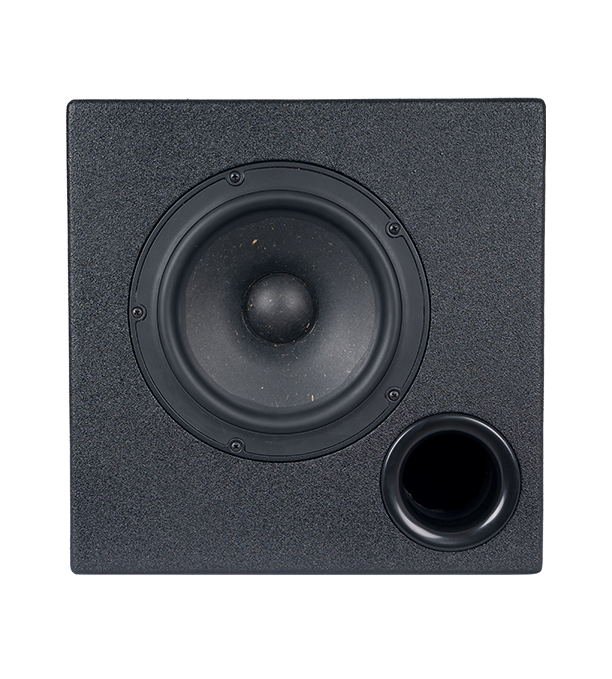

Sub woofer
Frequency Range 25Hz-200Hz In Room Response
Power Handling 125-450 Watts RMS
Sensitivity 915dB for 2.83 volts at 1 meter
Impedance 4Ω
Enclosure Type Bass reflex front vented
Low Frequency Driver 10” diameter coated paper cone, and a Ferrite magnet motor
Dimensions 320mm high x 320mm wide x 451mm deep
