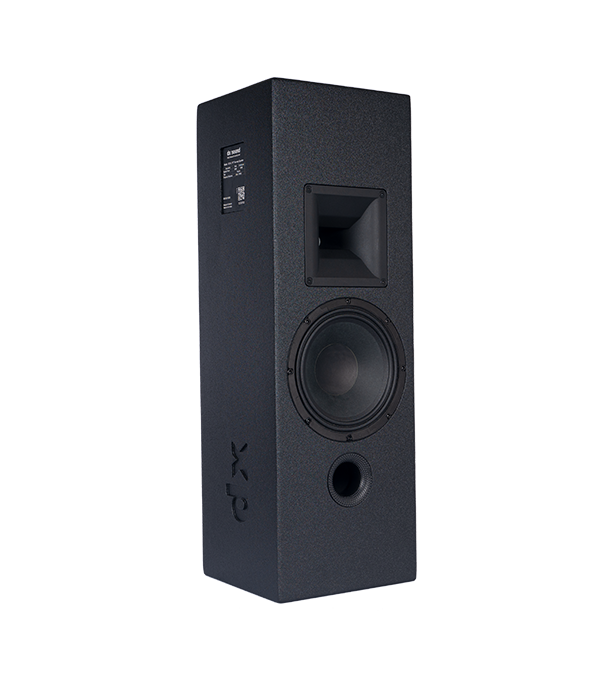

SC 18

Technical Parameters
Frequency Range 45Hz-20kHz (-3dB) In Room Response
Power Handling 100-250 Watts recommended amplifier power
Sensitivity 93dB for 2.83 volts at 1 meter
Impedance 8Ω (minimum 4Ω)
Configuration 2 way
Enclosure Type Bass reflex, front vented
Driver Low Frequency Driver-Single 8” paper cone driver High Frequency Driver-1′′ exit compression driver with 90x60 Nominal Coverage waveguide
Input Terminal Push To Hold type
Dimensions 736mm high x 246mm wide x 236mm deep
