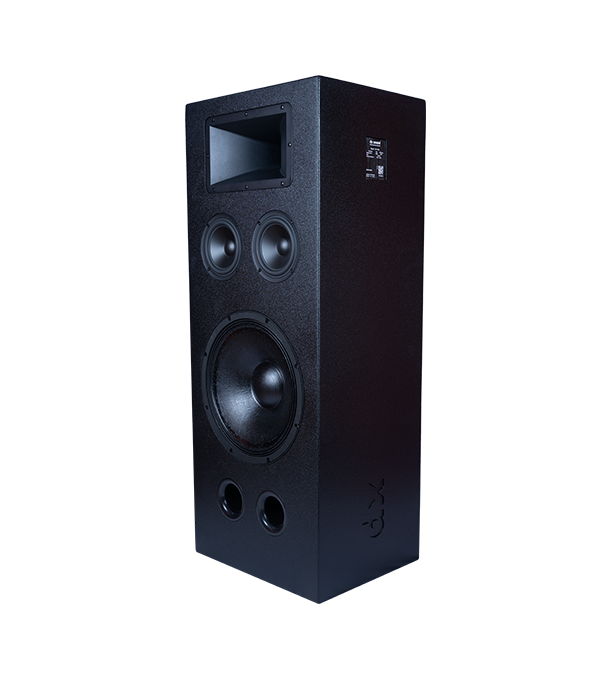

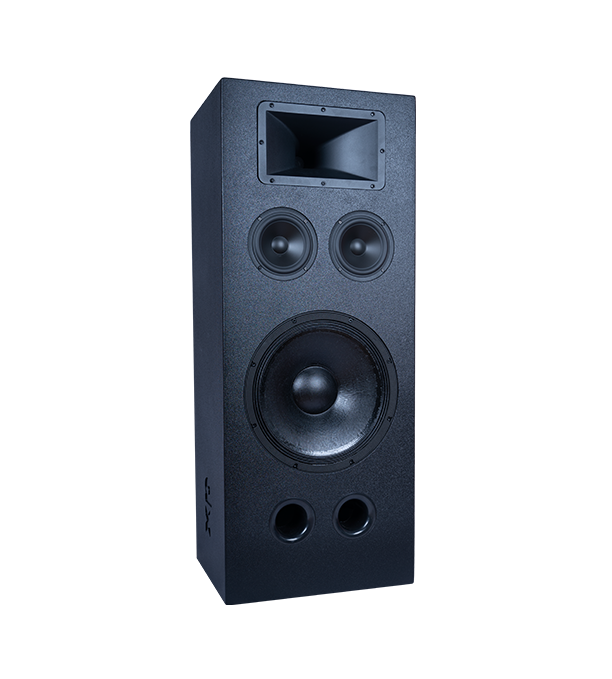

SC 11526

Technical Parameters
Frequency Range 40Hz-20kHz (-3dB) In Room Response
Power Handling 260-1020 Watts recommended amplifier power
Sensitivity 96dB for 2.83 volts at 1 meter
Impedance 8Ω (minimum 4Ω)
Configuration 3 way
Enclosure Type Bass reflex, front vented
Driver Low Frequency Driver-Single 15” paper cone driver Mid. Frequency Driver-Dual 6” paper cone driver High Frequency Driver-1.4″ exit compression driver with 60x40 Exponential wave guide
Input Terminal Push To Hold type
Dimensions 1168mm high x 450mm wide x 450mm deep
