| Frequency Range |
23Hz-400Hz (-3dB) In Room Response |
| Power Handling |
200-700* Watts recommended amplifier power
* The use of a power amplifier with high pass filter and soft limiter function is strongly recommended
on Passive sub woofers(If use Passive Models). |
| Sensitivity |
90dB for 2.83 volts at 1 meter |
| Impedance |
4Ω |
| Enclosure Type |
Bass reflex, front vented |
| Driver |
Low Frequency Driver-Single12” paper cone driver with 51 mm (2 in) long throw voice coil developed
for high level, low frequency reinforcement |

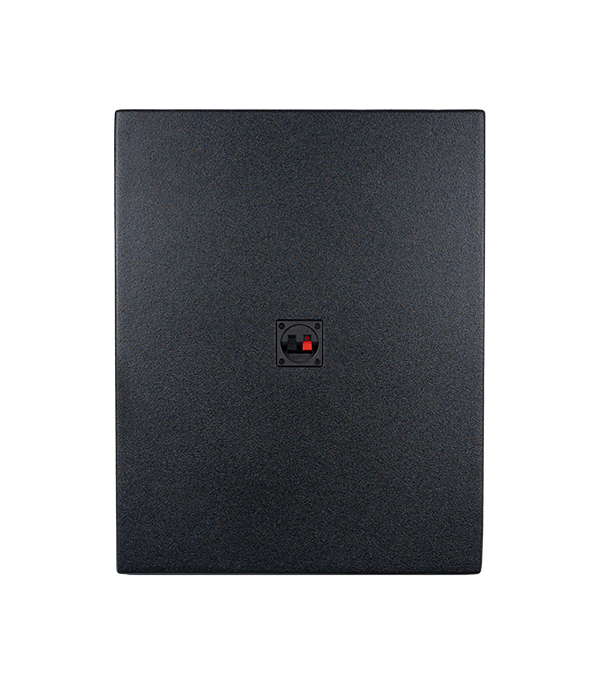

| Input Terminal |
Push To Hold type |
| Dimensions |
436mm high x 436mm wide x 596mm deep |
